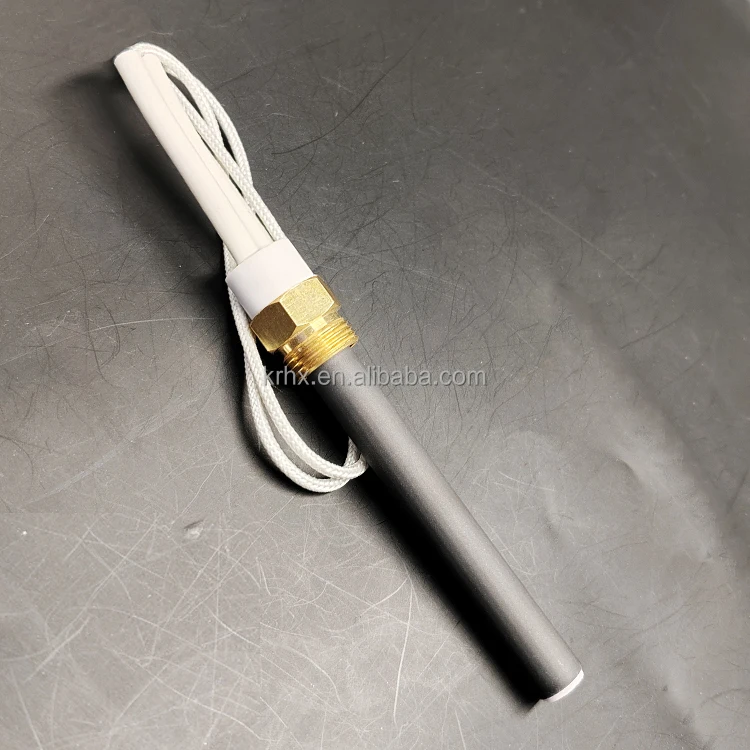

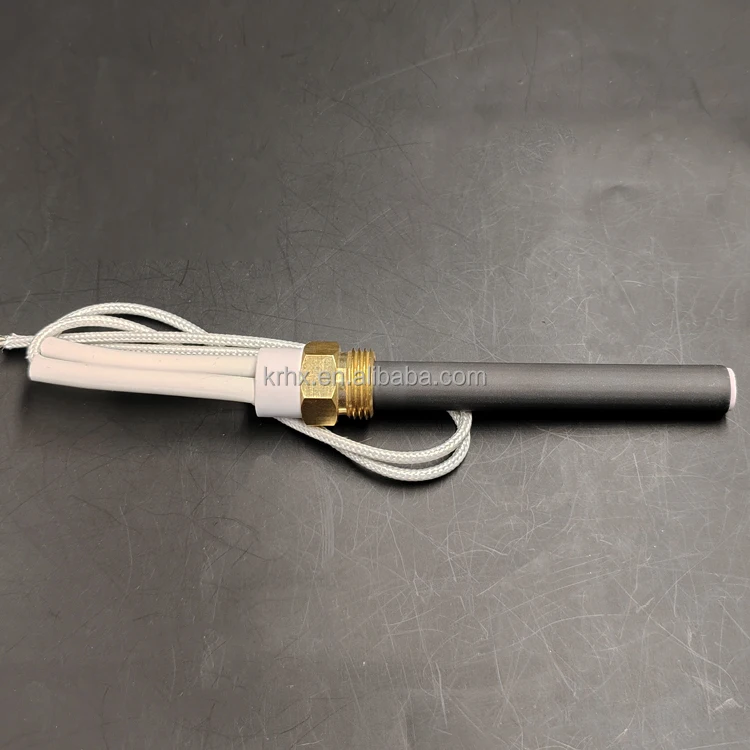

Heating 230V and 300W Pellet Resistance Ceramic Cartridge with 30cm Customized Lead Wire

Name: Heating 230V and 300W Pellet Resistance Ceramic Cartridge with 30cm Customized Lead Wire
Brand: KRHX
Price: 1 USD

Quality Heating 230V and 300W Pellet Resistance Ceramic Cartridge with 30cm Customized Lead Wire for sale

Brand Name : KRHX

Model Number : KR-W4

Certification : CE

Place of Origin : China

MOQ : 10

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 1000PCS/Week

Delivery Time : 5-8 workdays

Packaging Details : In cartons each containing 20 boxes

Name : 230v and 300w pellet resistance ceramic cartridge

Max Working Temperature : 600-1000℃

Feature : Fast Heating

Voltage : 230V

Power : 250-330W

Application : Extraflame stoves / boilers

Dimension(L*W*H) : 11.5*106 mm

Time to ignition : About 90 seconds

Terminal : ultrasonic + crimping

Lead wire : 30cm Customized

Contact Now

230V and 300W pellet resistance ceramic cartridge

Size

Diameter: 11.5 mm.

Total length: 106mm.

Bottom length: 80 mm.

Power

250-280 Watts.

Maximum temperature

970 ° C

Application

Resistance,

ignition glow plug for ceramic pellet stoves, suitable for pellet ignition and wood chips for stoves, boilers and burners.

Tested

for over 10,000 ON / OFF cycles, with fast ignition times.

Flange

G3/8 brass flange

Mounts on stoves

Central heating boilers

PELLASX pellet burners.

Detailed Images

Heating 230V and 300W Pellet Resistance Ceramic Cartridge with 30cm Customized Lead Wire

* Installation

1. The igniter is more than 10mm away from the bottom of the metal tube

2. The igniter must not be exposed to direct flames. This can cause the heating element to directly leak current during operation, leading to circuit tripping.

3. Be sure to leave a minimum 3mm gap around the ceramic igniter and the metal tube.

Heating 230V and 300W Pellet Resistance Ceramic Cartridge with 30cm Customized Lead Wire

Related Products

φ8.8*71mm φ9.3*81mm φ11.5*93mm

12V 80W 110V 110W 120V 280W

φ11.5*93mm φ11.5*93mm φ11.5*93mm

230V 230W 220V 240-300W 120v300W

φ9.3*71mm φ11.5*93mm φ11.5*106mm

12V 110W 120V 280W 120V 300W

Packing & Delivery

Packaging Details :1000pcs/CTN, each CTN with single box, 40CTN/pallet. Export standard, 100% no damage
Delivery Time:3-15days

SHIPPING - Meanwhile, other shipping ways are available such as FedEx, UPS, TNT, EMS, China Post or Sea.

Just let us know which one is best for you, we do all the left work.

Heating 230V and 300W Pellet Resistance Ceramic Cartridge with 30cm Customized Lead Wire

Our Company

Shaanxi Kairuihongxing Electronic Co.,Ltd is a professional domestic and foreign trade, production and sales

integration of company, we produce all types of ceramic igniters, ozone generator ceramic plate and iqos heating blade.

Our company was established in 2007, have many years of history in the ceramic heating industry,it can also be in

accordance with the requirements of the project put forward by your company, by our professional team which will set the stature for you do not trouble back at home of the one-stop service from designation installation and debugging to production.

As a result of our high quality products and outstanding customer service, we have gained a global sales network

reaching Europe. At the same time we has obtained ISO9000, CE, ROHS certificate.

If you are interested of our products or would like to discuss a custom order, please feel free to contact us. We are

looking forward to forming successful business relationships with new clients around the world in the near future.

Heating 230V and 300W Pellet Resistance Ceramic Cartridge with 30cm Customized Lead Wire

Our Service

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.

FAQ

Q: Are you trading company or manufacturer ?
A: We are a company with own factory.

Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. 3 to 7 working days for sample,7 to 12 working days for mass production goods.

Q: Do you provide samples ? is it free or extra ?
A: Yes , we have different customer make their own OEM product .so we also can make product as per your requirement

Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
